| Model | CBD15W | CBD18W | CBD20W | |
| Load capacity | Q(kg) | 1500 | 1800 | 2000 |
| Fork height, lowered | h13(mm) | 85/75 | 85/75 | 85/75 |
| Tyre size, front | mm | Φ195×70 | Φ195×70 | Φ195×70 |
| Tyre size, rear(single) | mm | Φ80×93/Φ74×93 | Φ80×93/Φ74×93 | Φ80×93/Φ74×93 |
| Tyre size, rear(double) | mm | Φ80×70/Φ74×70 | Φ80×70/Φ74×70 | Φ80×70/Φ74×70 |
| Wheels, number front rear(x = driven wheels) | 1x-2/4 | 1x-2/4 | 1x-2/4 | |
| Max. lift height | h3(mm) | 190/180 | 190/180 | 190/180 |
| Height of tiller in drive position min./ max. | h14(mm) | 950/1310 | 950/1310 | 950/1310 |
| Overall length | l1(mm) | 1525/1595 | 1525/1595 | 1525/1595 |
| Length to face of forks | l2(mm) | 375 | 375 | 375 |
| Overall width | b1(mm) | 685 | 685 | 685 |
| Fork dimensions | s/e/l(mm) | 53/160/1150(1220) | 53/160/1150(1220) | 53/160/1150(1220) |
| Width overall forks | b5(mm) | 520/550/685 | 520/550/685 | 520/550/685 |

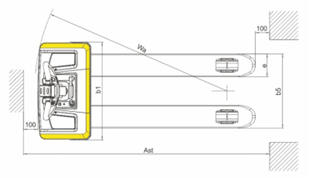

| Aisle width for pallets 1000×1200 (1200 crossways) | Ast(mm) | 1725/1795 | 1725/1795 | 1725/1795 |
| Aisle width for pallets 800×1200 (1200 lengthways) | Ast(mm) | 1775/1795 | 1775/1795 | 1775/1795 |
| Turning radius | Wa(mm) | 1347/1415 | 1347/1415 | 1335/1405 |
| Travel speed, laden/ unladen | km/h | 5.3/5.8 | 4.5/5 | 4/4.5 |
| Battery voltage/nominal capacity | V/Ah | 24/80 | 24/80 | 24/80 |
| Battery dimensions l/w/h | mm | 260/169/215 | 260/169/215 | 260/169/215 |
| Battery weight | kg | 49 | 49 | 49 |
| Service weight (with battery) | kg | 230 | 250 | 250 |
Walkie Pallet Truck 1.5 Ton And 2 Ton
Walkie electric pallet truck with small turning radius
Loading capacity: 1.5 ton, 2 ton
Capacity: 500,000 units/year
- JAC new type Tiller Head with Max. speed limit button.
- Emergency stop & belly button.
- BDI and hour meter.
- Casters to balance stability.
- Sealed battery.
- Brush-less Horizontal motor.
- Built-in Charger.
- Exist roller.
- With smallest turning radius 1320mm-1389mm (width 520mm/550mm/685mm).
- Brushless motor with high electric efficiency , maintenance free.
- Full sealed battery free to maintain, big capacity 80AH fit for high intensity use .
- Max speed limit button can release brake when handle under upright position, reduce turning space greatly. (option for frei handle)
- High travel speed is up to 5.3-5.8km/h, improve productive efficiency.
- Floating balance wheel is automatic adjust height, prevents shaking when unload.
- Horizontal drive wheel provides convenient replacement.
