| MODEL | SPN22-63 | SPN22-98 | SPN22-118 | SPN22-138 |
|---|---|---|---|---|
| Unit Type | Semi-Electric Stacker | |||
| Load Capacity | 2,200lb | 2,200lb | 2,200lb | 2,200lb |
| Load Center | 24″ | 24″ | 24″ | 24″ |
| Power | 12V/100Ah Maintenance Free Deep Cycle Battery | |||
| Battery Charger | Built-In 12V/10A Battery Charger 100V | |||
| Fork Dimensions | 42″ Standard | |||
| Max Lift Height | 63″ | 98″ | 118″ | 138″ |
| Min Lift Height | 2.13″ | 2.13″ | 2.13″ | 2.13″ |
| Mast Stages | 1 | 2 | 2 | 2 |
| Turning Radius | — | — | — | — |
| Vehicle Dimensions | Download Brochure | |||
| Travel Speed | Download Brochure | |||

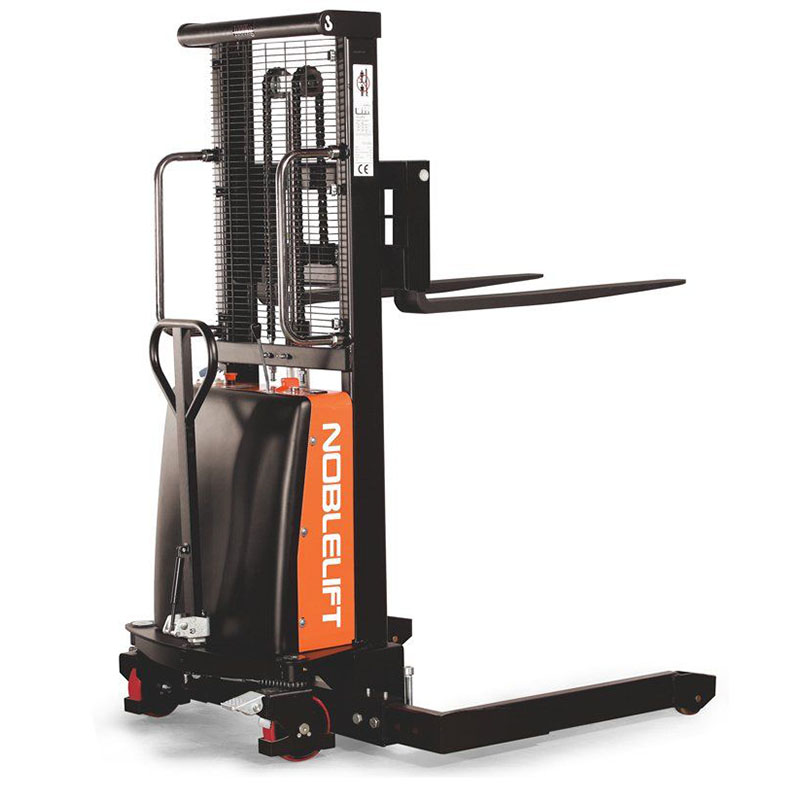

SPN22AG
Semi-Electric Stacker
The SPN22AG 2,200lb capacity, semi-electric stacker is available in (4) different maximum lift heights and is designed for light-duty lifting of loads, skids, racks and objects. The lifting is electric powered with the controls conveniently mounted on the dash. It is manually propelled. Forks and straddle legs can adjust from side to side to accommodate different skid widths.
This ergonomic stacker is also equipped with a built-in battery charger, a battery gauge on/off key switch, an operator protection screen, foot pedal parking brake, dual-push handles mounted to the mast at a comfortable height, and a spring-loaded steering handle with comfort grip. Semi-electric – Excellent value!

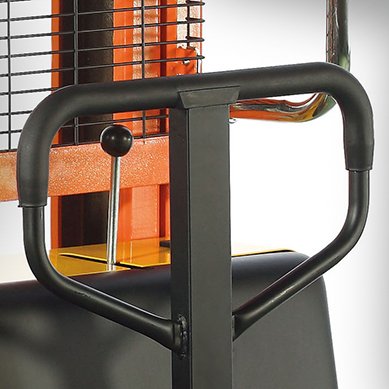

Ergonomic Comfort Grip Handle

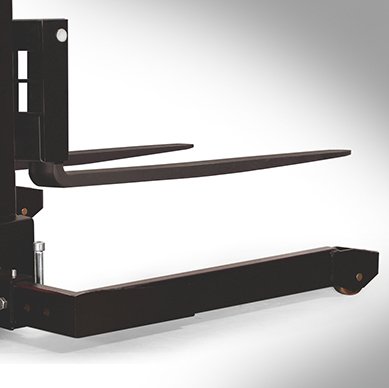

Adjustable Forks and Straddle Legs. Forks lower to the minimum height of 2 1/8″.
Two-Swivel and Two Rigid Casters provides four-wheel support for heavy loads.

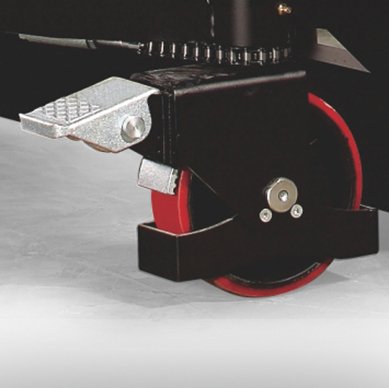

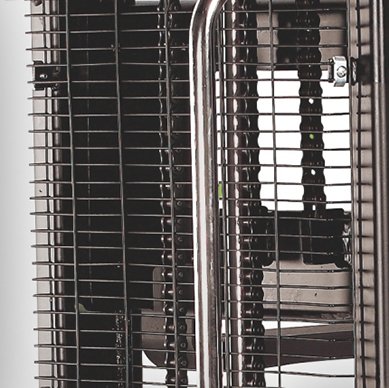

Foot Pedal Parking Brake and Safety Screen ensure safety during operations.
Sturdy and Reliable Mast made of rolled U-profiles. Hard chrome plated pistons. Adjustable lifting chain. Powerful lift motor with 2.1 HP.

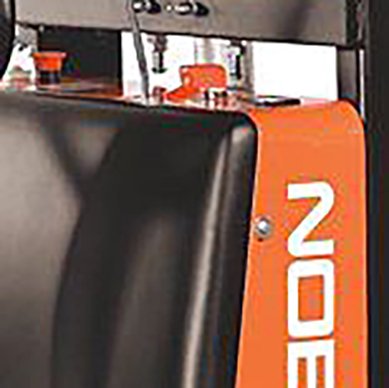

Integrated 150 AH Maintenance Free Battery supplies strong power to support frequent lifting tasks, an integrated charger facilitates easy and reliable charging of the built-in battery.
