OPH26 / OPH26K

Category:

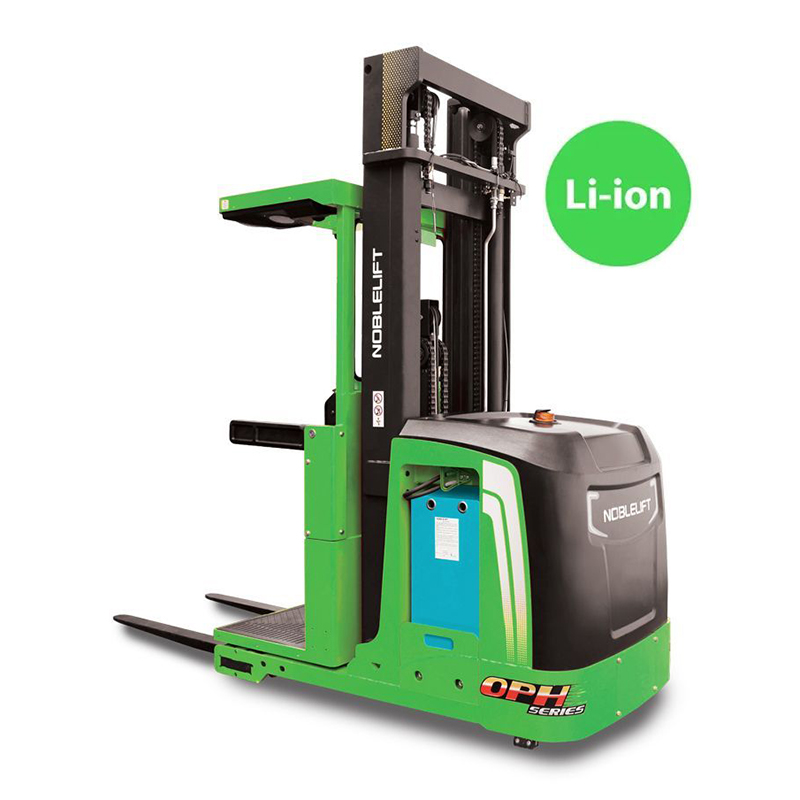

Lithium Man-Up Order Picker
The OPH26 / OPH26K Series Lithium Man-Up Order Pickers operate within a 64” aisle width, have a 2,600 lbs lift capacity and are engineered to deliver exceptional versatility, easy handling and very low maintenance. With a wide range of capabilities, these order pickers can adapt to a variety of warehouse, manufacturing, distribution and food storage environments. They are designed to help run a faster, more efficient operation. Choose from (6) lift heights ranging from 177” to 354”. Lithium charger included.

They offer high-speed lifting and lowering and are equipped with a lithium battery capable of multiple shift operation. AC Drive and AC Lift motors contribute to smoother operation, greater energy efficiency and longer component life. A high-power platform fan provides comfortable operation in high temperature environments. High-maneuverability and high-reach capabilities make these order pickers the ideal choice for your most demanding applications where efficient, narrow aisle, high-lift height material handling is required.

BROCHURE    VIDEO

MODEL  OPH26-177  OPH26-189    OPH26-236
Unit Type    Lithium Man-Up Order Picker
Load Capacity  2,600lb 2,600lb 2,600lb
 Load Center 24″ 24″ 24″
Power   24V / 560Ah Lithium Battery
Battery Charger 24V/200A
Fork Dimensions 42″ Standard
Max Lift Height  177″ 189″ 236″
Min Lift Height 2.4″ 2.4″ 2.4″
Mast Stages  3 3 3
Turning Radius  72″ 72″ 72″
Vehicle Dimensions  Download Brochure
Travel Speed Download Brochure
MODEL  OPH26K-177 OPH26K-189  OPH26K-236 OPH26K-275  OPH26K-315  OPH26K-354
Unit Type    Lithium Man-Up Order Picker
Load Capacity  2,600lb 2,600lb 2,600lb 2,600lb 2,600lb 2,600lb
 Load Center 24″ 24″ 24″ 24″ 24″ 24″
Power   24V / 560Ah Lithium Battery
Battery Charger 24V/200A
Fork Dimensions 42″ Standard
Max Lift Height  177″ 189″ 236″ 275″ 315″ 354″
Min Lift Height 2.4″ 2.4″ 2.4″ 2.4″ 2.4″ 2.4″
Mast Stages  3 3 3 3 3 3
Turning Radius  72″ 72″ 72″ 72″ 72″ 72″
Vehicle Dimensions  Download Brochure
Travel Speed Download Brochure

Multi-Functional Handle controls key vehicle functions – travel speed and proportional lifting and lowering.

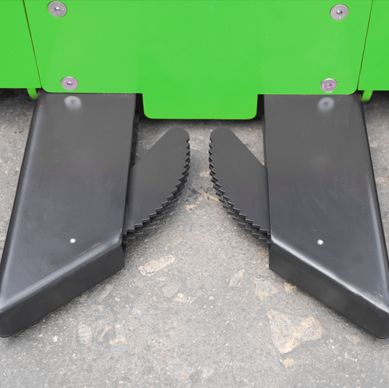

Auto Pallet-Locking Clamp provides instant load stabilization while significantly boosting load handling speed.

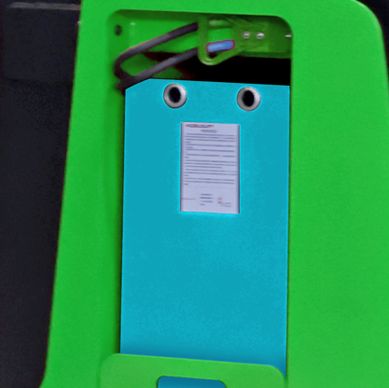

Smart Lithium Battery
Large capacity, fast-charging (2.5 hours) maintenance-free Lithium battery, capable of multiple shift operation. Side extraction reduces maintenance time.

Wireless 4G battery monitoring allows for remote battery programming and troubleshooting.

The integrated BMS (Battery Management System) controls all important parameters and performance of the lithium battery.

Curtis Controller and CAN-BUS Technology
Easily check condition and troubleshoot with Curtis controller and CAN-bus technology.

Large LED Screen
Large LED screen conveniently displays lifting weight, lifting height, speed, power, steering, fault code, alarm and more.

Weight Activated Foot Pedal automatically stops the vehicle when the operator’s foot is removed from the pedal.

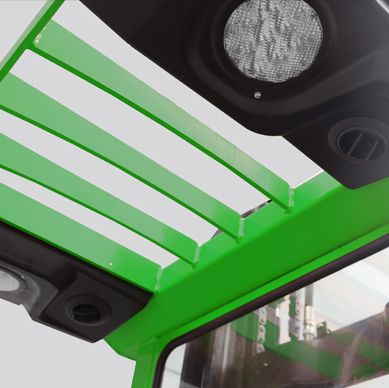

Platform Lights for dimly lit areas. High-power Platform Fan keeps operator comfortable in high temperatures.

Wide View and Clear Visibility
Mast layout is optimized for a wide view and clear visibility while operating.

USB connector for charging and powering of additional devices during operations.

Easy-Maintenance
Convenient and fast access to any component of the truck. No Special tools are required.

Fork lengths: 48”, 54”, 60”
