| MODEL | ACR44-3348-2431 | ACR44-4048-3247 | ACR44-4548-4863 |
|---|---|---|---|
| Unit Type | Manual Pallet Truck | ||
| Load Capacity | 4,400lb | 4,400lb | 4,400lb |
| Fork Dimensions | 33.5″ W x 48″ L Standard | 40″ W x 48″ L Standard | 45″ W x 48″ L Standard |
| Size of Fork | — | — | — |
| Max Fork Height | — | — | — |
| Min Fork Height | — | — | — |
| Steering Wheel | φ8″ x 2″ | φ8″ x 2″ | φ8″ x 2″ |
| Load Roller Single | — | — | — |
| Load Roller Tandem (special order) |
φ3″ x 2.8″ | φ3″ x 2.8″ | φ3″ x 2.8″ |
| Reel Diameter | 24″ to 31″ | 32″ to 47″ | 48″ to 63″ |

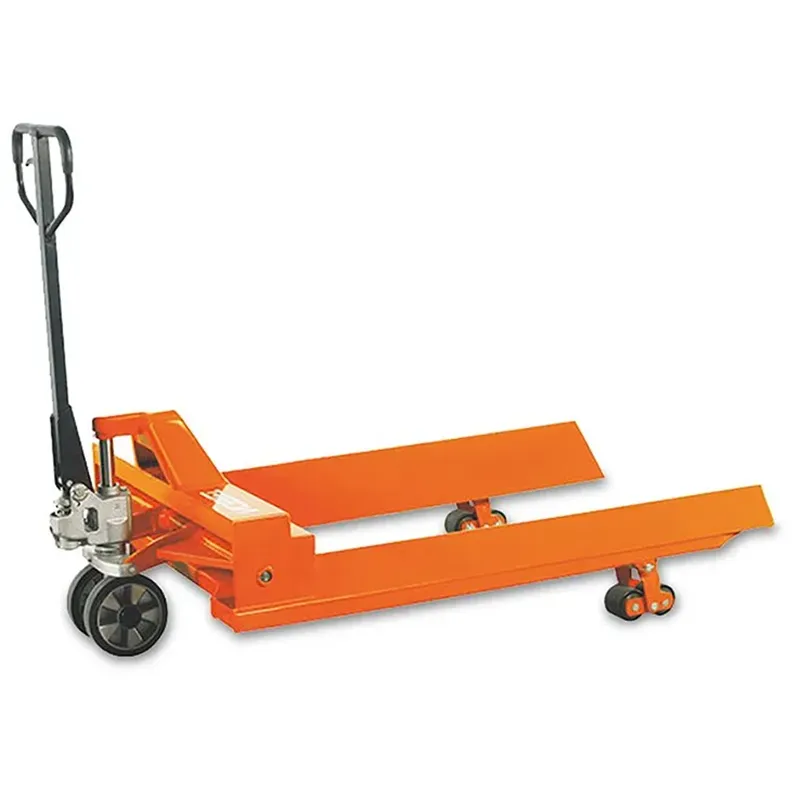

ACR44
Roll/Reel Carriers
The ACR44 Roll/Reel Carrier Manual Pallet Truck has a 4,400lb load capacity and is designed for carrying horizontal transport loads, such as rolls, reels, cable drums and more. It can carry loads from 24″ to 63″ diameters.
This ergonomic, powder coated pallet truck is easy to maneuver with effortless steering. Chromed bearing bushes and joints ensure quite operation and a long life. High-quality – Great Price.

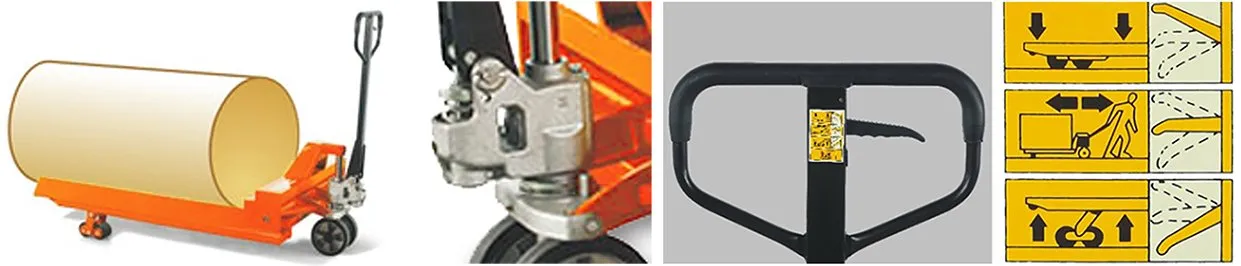

Reel Carrying Truck designed for carrying horizontal transport loads such as rolls, reels, cable drums, etc.
Galvanized One-Piece Integrated Hydraulic Pump with overload relief valve offers fine-lowering speed control and low maintenance.
Option of Single or Tandem Fork Rollers
Tandem rollers are special order.
Ergonomic Handle with Comfortable Rubber Grip
Handle offers optimized safety and comfort. Three position operational handle lever for lifting, transportation and lowering purposes.
Lower Position- to lower load, pull up on the finger tip control.
Neutral Position -place fingertip control in this position when pulling the truck load.
Lift Position – to raise load, push down on finger tip control, pump handle to raise the load.
Axle Mounted, 3 Position Loop Handle (Up/Down/Neutral)
Adjustable Push Rod Assembly
